W076471 - 45ASB36V80P-1

Write a Review
1,341.00€
SKU:
W076471
UPC:
3605340017861
Availability:
Available
>

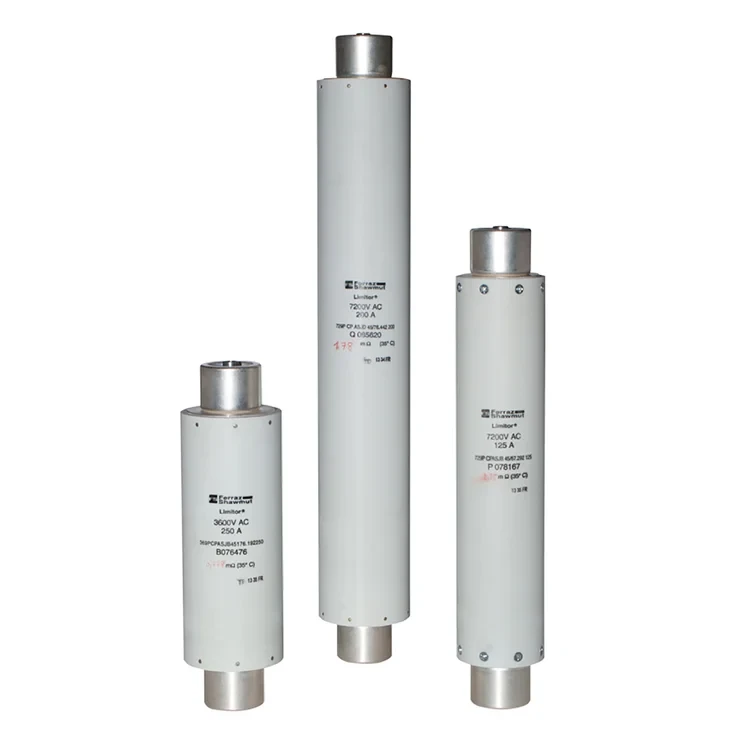

High Voltage Back-up fuse for motor Limitor® 3.6kVAC IEC 80A Size d=50.8mm, L=192mm With Striker 20N

Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Mersen HV fuse link for motor protection is specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents due motor starting. Mersen uses the best materials: fuse elements are in silver-plated copper; caps are in silver-plated brass and body is in melamine fiber glass. As defined in the IEC 60644 the coefficient K is 0.51.

SpecificationValue
Rated Voltage AC3.6 kV
Ampere Rating80 A
Fuse Sized=50.8mm L=192mm
MountingClip
Sell Pack Quantity3 EA
Product Weight1.9 kg
Sell Pack Weight5.7 kg
Product GroupHigh Voltage IEC Fuses
RoHS CompliantYes
