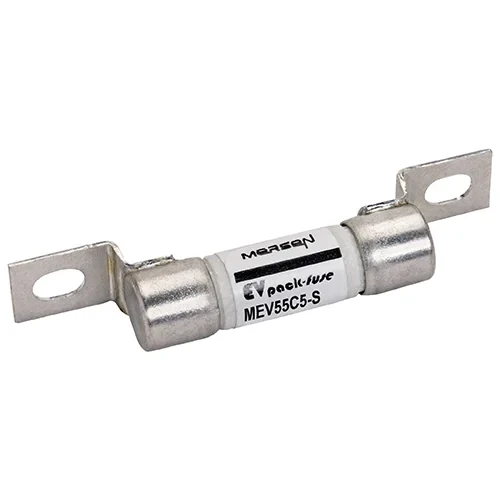

EVpack Fuse 550VDC UL 5A Max. Rated Breaking Capacity DC: 20 kA @ 550 V L/R ≤ 1 ms Surface Screw Mount
EVpack-fuse line-up belongs to Mersen’s DC Over-Current protection (O.C.P.) portfolio specifically developed to address on-board electric and hybrid vehicles applications. EVpack-fuse provides the ultimate protection by offering reliable clearing of DC fault currents in challenging environments and complies with the high-quality requirements of the automotive industry. The MEV55C has specifically engineered and tested to provide best-in-class protection performance for auxiliary circuits: Up to 550VDC, Current rating (In)= 5 to 50A, Interrupting Rating (IR) = 20kA,L/R ≤1ms, Minimum Breaking Capacity (MBC) as low as 2xIn for a perfect matching with cable protection. The MEV50A has been specifically engineered and tested to provide best-in-class protection performance for main battery and on-board charging protection: Up to 500VDC, Current rating (In)= 60 to 800A, Interrupting Rating (IR) = 30kA, L/R ≤ 2.5ms, Minimum Breaking Capacity (MBC) as low as 2xIn or a perfect matching with DC contactor.
| Specification | Value |
|---|---|
| Ampere Rating | 5 A |
| Mounting | PC Mount |
| Sell Pack Quantity | 80 EA |
| Product Weight | 0.0099 kg |
| Sell Pack Weight | 0.792 kg |
| Product Group | EV and Battery Protection Fuses |
| RoHS Compliant | Yes |
