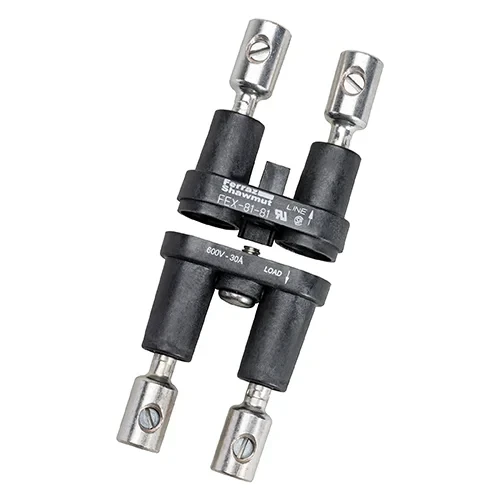

Fuse Block 600VAC 600VDC Midget 30A 2-Pole 81-81 Single Set Screw
Mersen’s complete line of single and dual pole in-line fuse holders accommodate either 1-1/2" x 13/32" (10 x 38 mm) midget or Class CC fuses. The fuse holders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuse holder providing a waterresistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuse holder can be easily reconnected.
| Specification | Value |
|---|---|
| Ampere Rating | 30 A |
| Mounting | In-Line |
| Sell Pack Quantity | 10 EA |
| Product Weight | 0.0907 kg |
| Sell Pack Weight | 0.9525 kg |
| Product Group | Fuse Bases |
| RoHS Compliant | Yes |
